I-Milimeter-Level Precision! I-servo vibration ikhombisa kanjani imboni eyenza izitini

[Amaphoyinti wezinhlungu zemboni]

Kunezinkinga ezinkulu ezintathu ngezinhlelo zendabuko zokudlidliza:

 Ukudlidliza okuvundlile kuholela ekulahlekelweni kokubumba (izindleko zonyaka zidlula ama-500,000 yuan);

 Ubuningi bokungalingani bubangela ukuqhekeka kwezitini (isilinganiso se-scrap phezulu kungama-5%);

 Ukusetshenziswa kwamandla kubalwa ama-40% wokusetshenziswa kwamandla okuphelele komugqa wokukhiqiza.

[QGM Technology Solution]

1. Isakhiwo se-Hardware

o Izakhi ezibalulekile: I-Nokia S60 S7-1500plc + Mitsubishi servo motor + isiJalimane hbm torque sensor;

o Ukuthuthukiswa kwetafula elibi lokudlikiza

2. Lawula i-algorithm ephumelela

o I-algorithm ethuthukisiwe yokuzimela ™ Dynamic ™

o PID avaliwe-loop control Isikhathi sokuphendula isikhathi <10ms, qinisekisa ukuguquguquka kwemvamisa yokudlidliza <0.5%.

3. Ukuqhathaniswa kwemininingwane elinganisiwe

Izinkomba zemishini yendabuko ye-QMG Servo System Systement

Impilo yokubumba izikhathi ezingama-150,000 izikhathi ezingama-450,000 200%

Ukusetshenziswa kwamandla ngesitini nge-0.8kW · H 0.52kW · 35%

I-Daily Production Policy 24,000 izicucu ezingama-36,000 50

[Icala lesicelo]

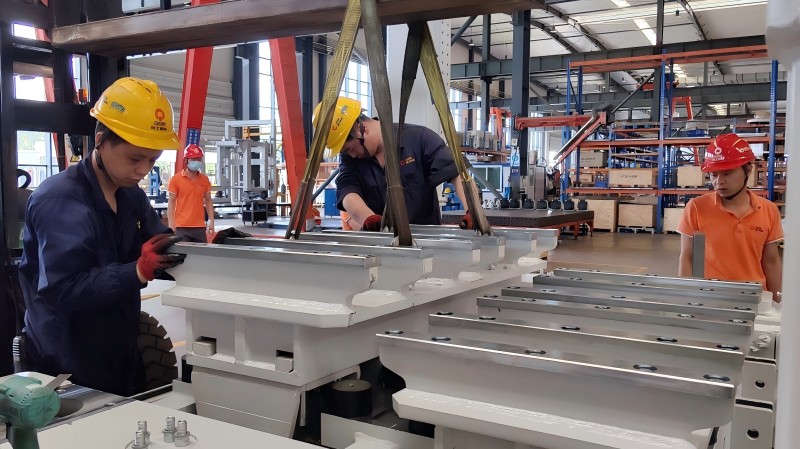

QMG ZN900 Equipmentisetshenziselwa ukukhiqiza izitini ezivumelekile kunjiniyela kamasipala we-Xiongan New Area. Ngemuva kokuhlolwa komuntu wesithathu, amandla acindezelayo afinyelela ezingeni le-CC50 (EN1338 ejwayelekile) kanye nezinga leposi le-3.2mm / s, kude kakhulu edlula izinga likazwelonke.
