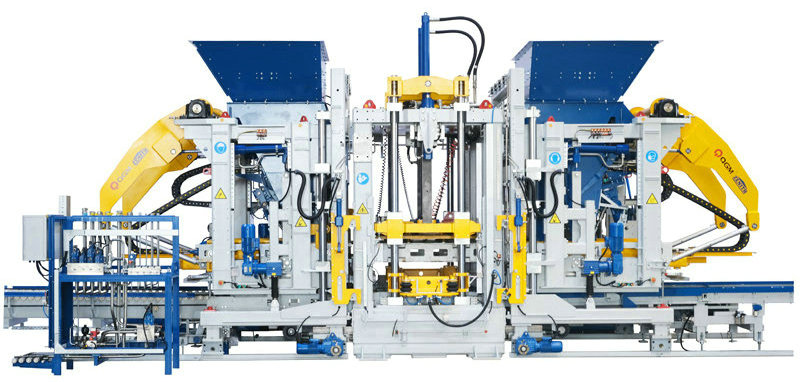

Umshini Wokuvimba Kakhonkolo we-ZN2000C

I-ZN2000C Concrete Block Machine iyimodeli yokuzithuthukisa. Ibonakala ngezinga eliphakeme lobuhlakani kanye ne-automation, futhi isebenzisa ngokugcwele ubuchwepheshe obusezingeni eliphezulu obusezingeni eliphezulu obufana ne-digitalization kanye nohlelo lolwazi, olusetshenziswa kakhulu ekwakhiweni kwamadolobha amasha namadolobha ayisipontshi.

Izici:

Ithebula lokudlidliza elikabili, ama-servo motors ayisishiyagalombili (uyazikhethela) Imishini ephezulu

Ukuhlanganiswa kwe-modular ukuze kube lula ukunakekelwa kwezinhlobo eziningi zezitini ezikhiqizwayo

Amandla aphezulu, ukukhiqiza okuphezulu

Usayizi wephalethi 1400x1400/1300mm

Indawo yokwenza 1320x1350/1250mm

Ukuphakama komkhiqizo 40-500mm

Inani lamabhulokhi Izitini ezingenalutho: amabhulokhi angu-18/isikhunta (390x190x190mm)

Izitini ezijwayelekile: 105 amabhlogo/isikhunta (240x115x53mm)

Izitini zomgwaqo: amabhlogo angama-66/isikhunta (200x100x60mm)

Usayizi wesisetshenziswa Cishe. 10,000

Cishe. 4,700

Cishe. 3,400

Isistimu yokudlidliza Amandla amakhulu okuvusa ithebula lokudlidliza: 200/kN

Amandla ashukumisayo aphezulu wekhanda lokucindezela: 40/kN

Imingcele kagesi Amandla aphelele (inkomba): 231/kW

Umdwebo ohleliwe wamasampula ezitini akhiqizwa imishini

Izinzuzo Zobuchwepheshe

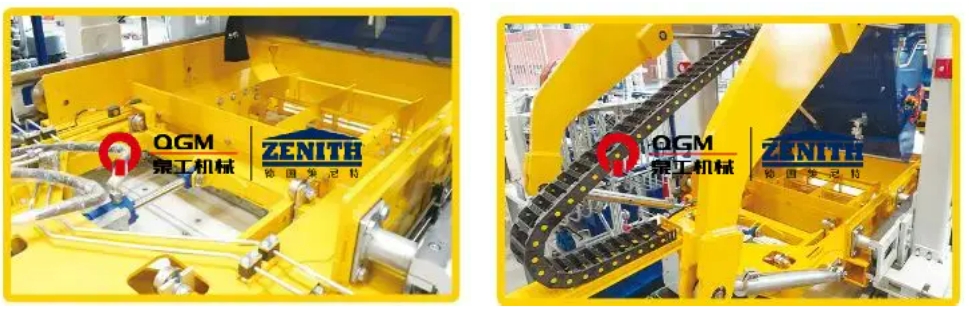

1. Idizayini yozimele yekhwalithi ephezulu yenguqulo yesiJalimane

Ifreyimu ye-mainframe yamukela uhlaka oluqinile olushiselwe oluklanywe ubuchwepheshe obunelungelo lobunikazi be-Zenit, obushiselwe insimbi yesigaba esikhethekile, enomklamo ozwakalayo, ngisho nokushisela okuhle, futhi lonke ifreyimu ibhekana nokwelashwa kokudlidliza kokuguga ukuze kuqinisekiswe izinga eliphezulu nokuzinza okuphezulu kohlaka. Inqubo yedizayini yesakhiwo ethuthukisiwe yenza uhlaka oluyinhloko lunwebeke, futhi umsebenzi wokuvula nokuvala isikhunta eseceleni, umsebenzi wokukhipha okuyinhloko (ibhodi), umsebenzi wokufakelwa kwebhodi le-polystyrene, njll. kungangezwa kamuva.

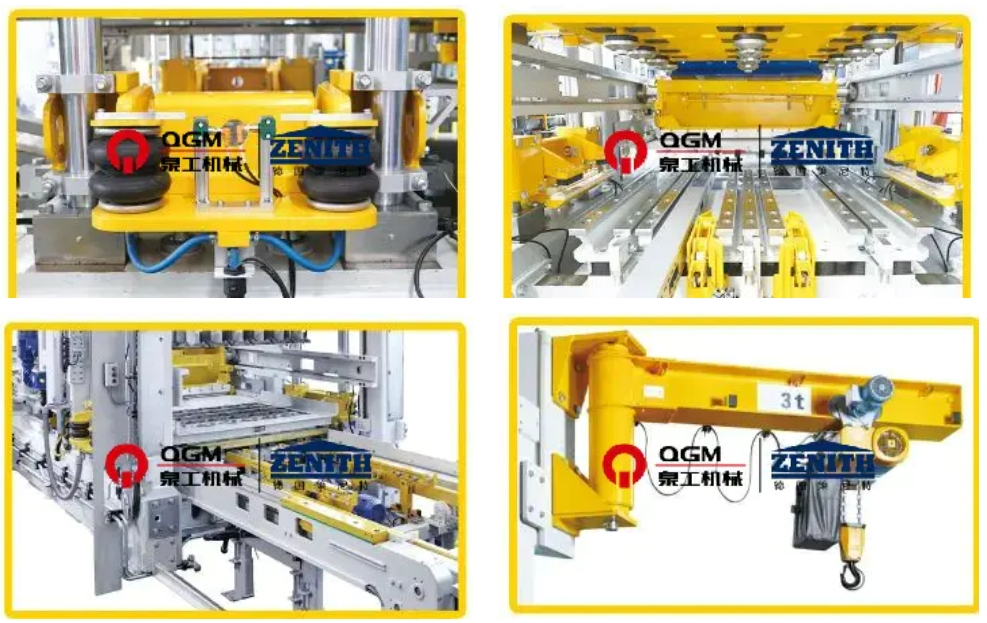

I-2.Isistimu yokuguqula isikhunta esisheshayo

Lapho isikhunta sidluliselwa endaweni yokubamba, uhlelo lwayo lokuphakamisa lubona ukuguqulwa kwesikhunta okuzenzakalelayo kudivayisi yokushintsha isikhunta esisheshayo. Isikhunta esingenhla nesingezansi siboshelwa ngokuzenzakalelayo, esiphephile, esisebenza kahle, esisebenziseka kalula futhi esilungele ukusinakekela. Ihlanganisa ikakhulukazi:

Idivayisi yokubopha isikhunta somoya: Ikakhulukazi iqukethe ubakaki besikhunta kanye nezinduku zokugoqa umoya ezinhlangothini zombili, ezisiza ekubambeni nasekulungiseni izibungu kanye nokumanzisa lapho umshini wokusingatha wenza ukudlidliza kwangaphambili nokudlidliza okuyinhloko, ukuze kuzuzwe umphumela wokudlidliza ongcono kakhulu futhi andise impilo yesevisi yesikhunta.

Idivayisi yokukhiya i-indenter ye-pneumatic: i-indenter ilungiswa idivayisi yokubopha nge-airbag, engakwazi ukufaka esikhundleni se-indenter kalula nangokushesha, ifinyeze isikhathi sokushintsha nokufaka isikhunta, futhi iqinisekise ukudotshwa okunembile kohlaka lwesikhunta esiphansi kanye ne-indenter engaphezulu.

Idivayisi Yokufaka i-Electric Mold Insertion: Idivayisi yokufaka isikhunta isetshenziselwa ukufaka isikhunta emshinini omkhulu kanye nokondla nokukhipha isikhunta emshinini ngokusebenzisa ubakaki wesikhunta kagesi, ongasetshenziswa ezikhunjini eziningi emakethe, futhi amabakaki okubumba akhethekile angasetshenziswa ukubumba okukhethekile.

Idivayisi Yokushintsha Isikhunta: Ifakwe ohlakeni lomshini omkhulu, isetshenziselwa ukuphakamisa nokulayisha isikhunta lapho ushintsha isikhunta, ifakwe i-electric chain hoist kanye nedivayisi yokuhamba kagesi.

3. Izindlela zokukhiqiza

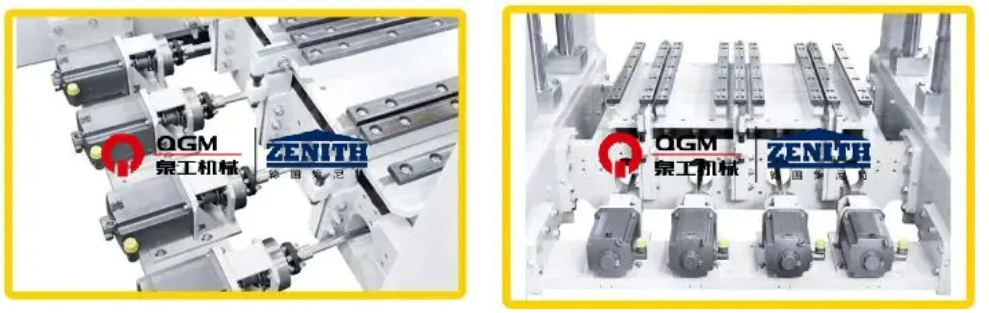

4. Isistimu yokudlidliza ye-servo “I-Ultra-dynamic”:

Ubuchwepheshe be-servo vibration "I-Ultra-dynamic" iwuhlobo olusebenza kahle kakhulu, uhlelo lokudlidliza oluzijwayezayo oluklanyelwe imishini yezitini; i-servo motor ingenza impendulo esheshayo ngesikhathi esifushane kakhulu sokuphendula, iqaphela ukusebenza kokudlidliza okuphezulu kakhulu, inciphise inani likasimende elisetshenzisiwe futhi ifinyeze umjikelezo wokukhiqiza, ikhiqize imikhiqizo yokhonkolo ephezulu; uhlelo lokudlidliza lungakwazi ukuzivumelanisa nezimo nezidingo zemikhiqizo ehlukahlukene ekhonkolo. I-servo motor ingenza impendulo esheshayo ngesikhathi esifushane sokuphendula ukuze ibone ukusebenza kokudlidliza okuphezulu kakhulu, okunganciphisa inani likasimende, kufinyeze umjikelezo wokukhiqiza, futhi kukhiqize imikhiqizo kakhonkolo ehlangene kakhulu; uhlelo lokudlidliza lungashintshwa ngokuguquguqukayo ukuze luvumelane nezidingo zokukhiqiza zemikhiqizo ehlukene kakhonkolo.

amayunithi okudlidliza angu-8 anebhalansi yomshini esethwe ngawodwa ngama-servo drives angu-8;

Ama-servo motors ayi-8, afakwe ngawodwana emisebeni yokuhlukanisa i-vibration yangaphandle yezisekelo zenjini;

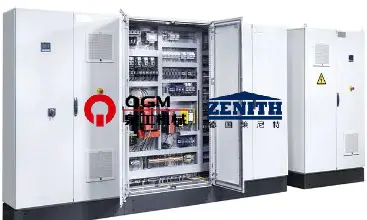

5. Uhlelo olunembile lokulawula i-servo

Ngempendulo yesignali, lawula isigaba nesivinini sokudlidliza, ukulawulwa kokunyakaza okuvumelanisiwe, isivinini esiphezulu sokulinda, kungaqedwa ngesikhathi esifushane ukudlidliza nokuqedwa kokudlidliza, ukusiza ukufinyeza umjikelezo wokubumba, nomthelela ongcono wokubhuleka. Ngokusebenzisa isikhundla nesivinini esiphindwe kabili esivalekile, lawula amandla ashukumisayo asebenza endaweni eqondile kuphela, wandise amandla ashukumisayo asebenzayo, futhi ngesikhathi esifanayo ugweme ukulimala okuvundlile emshinini wokuvusa amadlingozi, welule impilo yesevisi yemishini, futhi ukwazi ukwenza izilungiselelo ezihlukene zezidingo ezahlukene zomkhiqizo, futhi ukhiqize imikhiqizo yekhwalithi ephezulu.

Ikhanda lokucindezela, uhlaka lwesikhunta, imoto ehlanganisiwe kanye nemoto yendwangu ilawulwa yi-valve yokuqondisa ehambisanayo enempendulo ye-spool, enesikhathi sokuphendula ngokushesha; imodi yokulawula i-loop evaliwe ye-displacement sensor/encoder-PLC-proportional directional directional valve-cylinder iyamukelwa, okwenza ukulawula kunembe kakhudlwana, kanye nesenzo se-cylinder ngokushesha futhi sizinzile; isiteshi se-hydraulic samukela iphampu ye-piston eguquguqukayo, engakhiphi uwoyela ocindezelayo futhi yehlise iphampu lapho uhlelo lwe-hydraulic lufinyelela ingcindezi ebekiwe yokunciphisa ukusetshenziswa kwamandla; isiteshi se-hydraulic samukela i-accumulator kawoyela asizayo, enciphisa ukusetshenziswa kwamandla; futhi isiteshi se-hydraulic samukela ukunikezwa kukawoyela osizayo kwe-accumulator, okunciphisa ukusetshenziswa kwamandla futhi kunciphise ukusetshenziswa kwamandla. Isiteshi se-hydraulic samukela ukunikezwa kwamafutha asizayo we-accumulator, angasetshenziselwa izenzo eziningi ngesikhathi esisodwa, futhi ukucindezela kwesistimu ye-hydraulic kuzinzile; uhlelo lwe-hydraulic lunezinzwa zokucindezela, ezingaboniswa kuphaneli yokusebenza ukuze zibukwe kalula; uhlelo lwe-hydraulic lunezinzwa zokushisa, ama-coolers nama-heaters, angakwazi ukulawula ngokuphumelelayo izinga lokushisa kwamafutha, ukuze amafutha we-hydraulic abe nokusebenza okuhle.

6. Amasistimu we-hydraulic
